Why Pet Food Processors Need Reliable Metal Detection
Pet food manufacturing, including dog food production, sits within the broader food processing category where contamination control is a non-negotiable requirement. Raw ingredients such as meat, grain, and processed fillers pass through multiple stages of grinding, mixing, and extrusion equipment, any of which can introduce metal fragments—iron, aluminum, copper, or stainless steel—into the final product. Beyond the risk to animal health, undetected metal contaminants can damage downstream processing machinery, leading to costly production interruptions. For manufacturers operating in this space, the ability to identify and reject metal foreign objects before packaging is a fundamental safety and quality control function.
SINBON, a specialized manufacturer of metal and needle detection systems, has built its business around solving exactly this type of industrial pain point. With coverage extending across the Food Industry, Pharmaceutical Industry, Chemical Raw Materials, and several other regulated sectors, SINBON's detection technology is engineered to address the contamination risks that food processors—including those producing dog food and other pet food products—commonly face on their production lines.
SINBON's Technology Foundation for Dog Food Safety
Balanced Coil and DSP Technology
At the core of SINBON's detection systems is Balanced Coil Electromagnetic Induction Technology, which forms the detection basis for its Tunnel Metal Detector line. This is paired with Digital Signal Process (DSP) Technology, which performs real-time signal analysis and interference filtering. For dog food producers running high-throughput conveyor lines, this combination supports high stability during continuous operation, reducing the likelihood of false rejects that can slow production or unnecessarily discard safe product.
Dry/Wet Mode and Auto Product Learn
One of the more relevant technical features for pet food applications is the "Dry/Wet" Mode, an optimized algorithm that allows a single machine to detect both non-conductive (dry) products and highly conductive (wet) products. Since dog food production can involve both dry kibble and wet or semi-moist formulations, this dual-mode capability allows a single detection unit to serve multiple product lines without requiring separate equipment for each product type.
Complementing this is the Auto Product Learn function, which automatically calibrates the machine for different product effects without manual intervention. This addresses a common challenge in food detection: dense or conductive ingredients can otherwise be mistaken for metal contaminants, a phenomenon generally referred to as "product effect." Because the system learns and adjusts automatically, operators do not need specialized training to set up the equipment correctly for different formulations.
Product Lineup Suited to Dog Food Production Lines

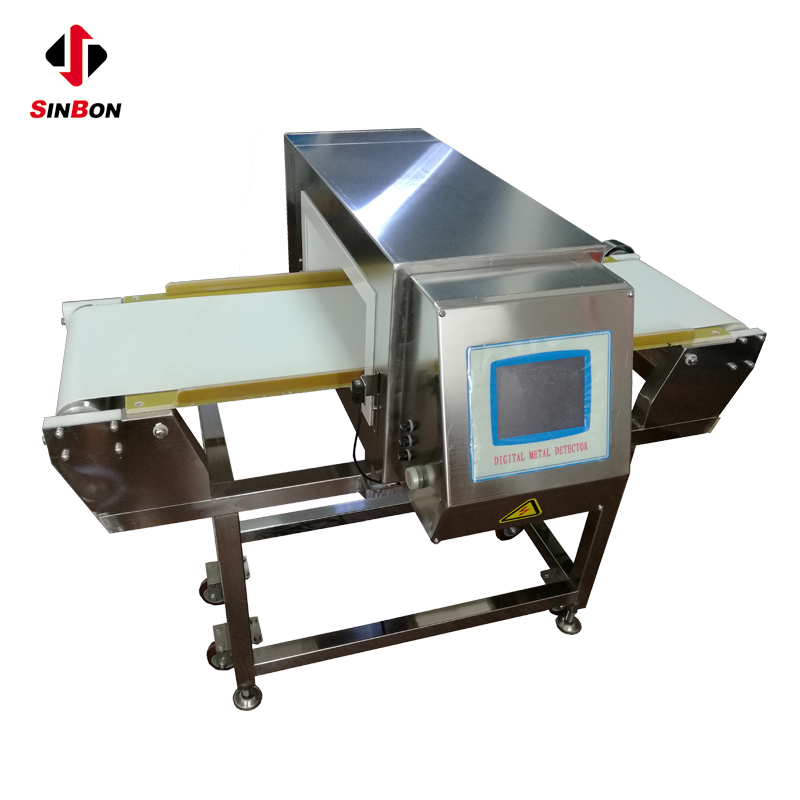

Tunnel Metal Detector Series (SBI)
The SINBON Tunnel Metal Detector (SBI Series) is positioned as a versatile detection head designed to identify metal contaminants in both dry and wet products moving along a conveyor. This series is directly relevant to dog food manufacturing lines that process either dry kibble or wet/canned formulations. Representative models illustrate the range of sensitivity and detection height available:
- SBI-3010 and SBI-4010: Detection height of 70mm, with sensitivity to Fe Φ0.7mm, Non-Fe Φ0.8mm, and SUS304 Φ1.2mm.
- SBI-5040 and SBI-8040: Detection height of 370mm, with sensitivity to Fe Φ2.5mm, Non-Fe Φ3.0mm, and SUS304 Φ4.5mm.
These units use a Balanced Coil Probe capable of detecting iron, aluminum, copper, and stainless steel, and offer modular rejector options—including air jet, air pusher, flapper, belt drop-down, and motor-driven roller—allowing integration into different conveyor configurations typically found in food processing facilities. The full Stainless Steel 304 structure of these units is built to meet HACCP requirements, a relevant consideration for pet food manufacturers operating under food safety compliance frameworks.
Gravity Feed Metal Detector Series (FMD)
For dog food operations that handle bulk powders, granules, or kibble through gravity-fed pipelines rather than conveyor belts, the Free Fall / Gravity Metal Detector (FMD Series) offers an alternative detection approach. This series supports pipe sizes ranging from 67mm to 335mm and flow rate capacities from 8,000 L/H to 120,000 L/H. Representative models include:
- FMD-70: Pipe size Φ67mm, with sensitivity to Fe Φ0.4mm, Non-Fe Φ0.6mm, SUS304 Φ0.8mm.
- FMD-150: Pipe size Φ146mm, with sensitivity to Fe Φ0.9mm, Non-Fe Φ1.2mm, SUS304 Φ1.5mm.
- FMD-340: Pipe size Φ335mm, with sensitivity to Fe Φ2.0mm, Non-Fe Φ2.5mm, SUS304 Φ3.5mm.
The range of pipe sizes and flow capacities allows dog food manufacturers to select a configuration matched to their specific bulk material handling volume, whether operating a smaller batch line or a high-capacity continuous production system.
Compliance, Durability, and Operational Advantages
Food safety compliance is a recurring theme across SINBON's equipment design. The full Stainless Steel 304 structure used in the Tunnel Metal Detector Series meets HACCP requirements, while equipment intended for pharmaceutical-adjacent contact parts is built to 316 Stainless Steel standards. For dog food manufacturers that must satisfy food safety audits and regulatory inspections, equipment built around these material standards provides a documented basis for compliance discussions.
Durability is another factor relevant to long-term equipment investment decisions. SINBON's equipment is designed for a working life exceeding 10 years, and the company draws on over 20 years of design and manufacturing experience in detection technology. Numerous machines have remained in active operation for more than 10 years across various global industries, according to SINBON's own service scale data. The systems are also described as "Maintenance Free," reducing the ongoing servicing burden for production facilities, and they do not require specialized operator training—an operational consideration for facilities managing shift-based staffing.
Additional design features support daily operations: conveyors are built for quick assembly and disassembly to facilitate cleaning, a relevant feature in food production environments where sanitation schedules are frequent. The equipment also offers multi-function operation interfaces (color touchscreen or LCD), password protection to prevent unauthorized parameter changes, and multi-language operating systems covering Chinese, English, Spanish, Portuguese, Polish, and Czech—useful for manufacturers operating across different regional facilities or with multilingual staff.
Choosing a Metal Detection Partner for Pet Food Manufacturing
For dog food and broader pet food manufacturers evaluating metal detection equipment, several factors are worth weighing: the ability to handle both dry and wet product formulations on one machine, sensitivity levels appropriate to the product's density and packaging, compliance with HACCP-aligned construction standards, and the practical realities of long-term maintenance and cleaning.
SINBON's product matrix—spanning the Tunnel Metal Detector Series for conveyor-based lines and the Gravity Feed Metal Detector Series for bulk material pipelines—offers configurations that align with these considerations. The combination of Balanced Coil detection technology, DSP-based signal processing, Auto Product Learn calibration, and Dry/Wet Mode flexibility reflects a technical approach built specifically around the variability found in food processing environments, including those producing dog food. As pet food safety expectations continue to be scrutinized by regulators and consumers alike, equipment that combines detection accuracy with operational durability remains a relevant consideration for manufacturers in this space.
